Industrial-Grade Rig Mats for Ground Protection
Heavy-duty construction mats with a high-quality design to protect surfaces and provide stable access in challenging terrain.
Rig Mat Options from Jacob A. Weaver
Our rig mats—made from the highest-quality wood: cherry, oak, beech, hickory, maple, and birch harvested in Pennsylvania—minimize environmental impact on sensitive sites. Rig mats keep equipment off fragile terrain, preventing soil compaction and protecting vegetation. When your project ends, remove the mats and the ground recovers naturally—leaving no permanent footprint.

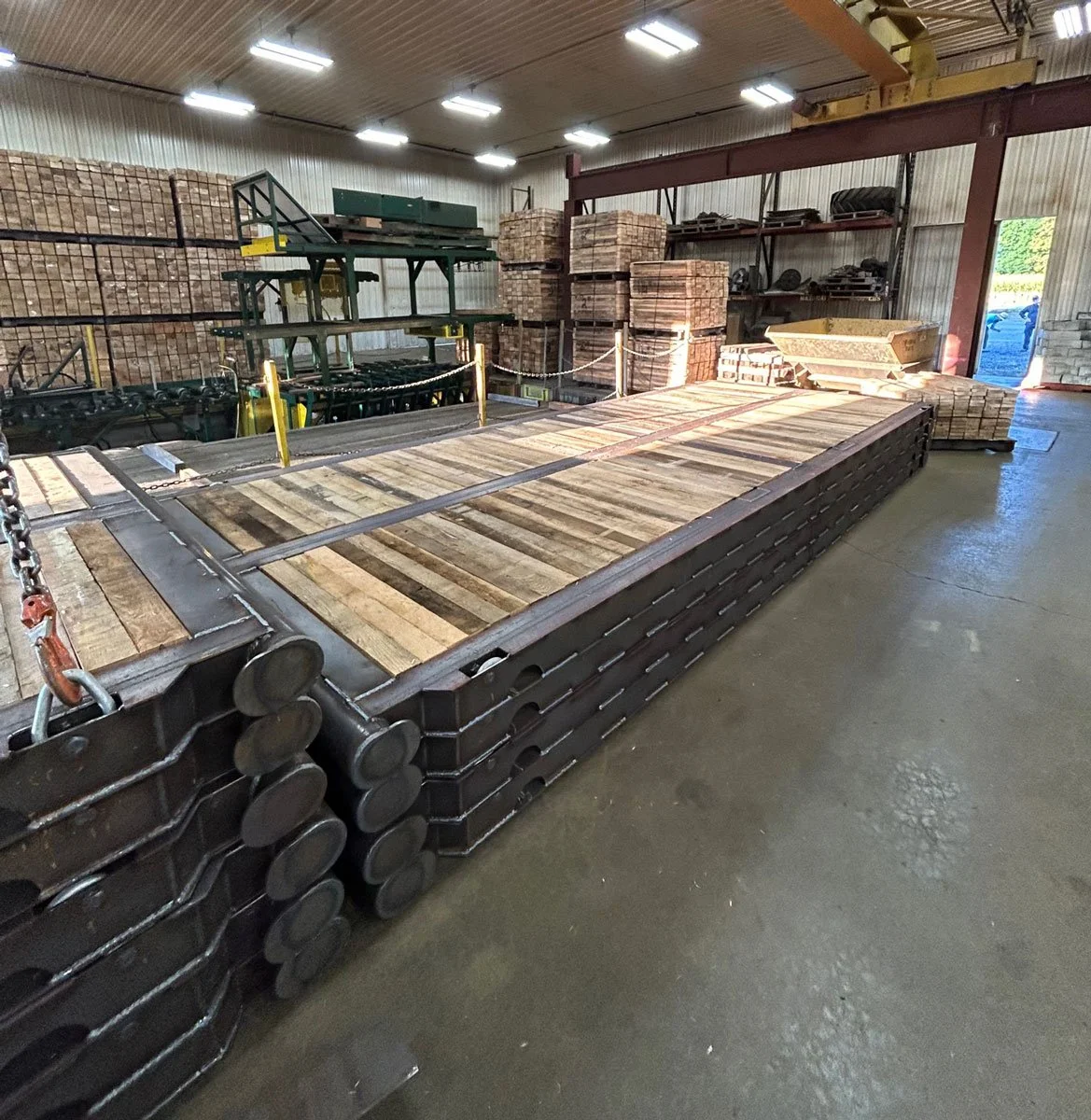

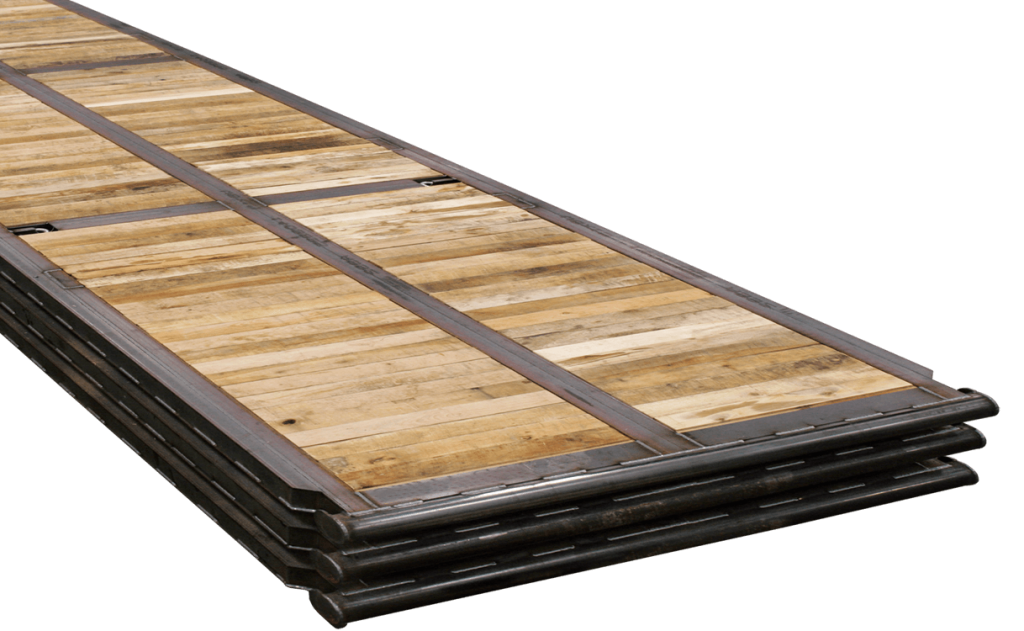

Sizes of Steel Frame Rig Mats We Manufacture:
8’ X 10’ 3 Beam 6” Thick
8’ X up to 15’ Length 3 BEAM 4” Thick (Access Mat)
8’ X 20’ 3 Beam OR 4 Beam 6” Thick
8’ X 30’ 3 Beam OR 4 Beam 6” Thick
8’ X 40’ 3 Beam OR 4 Beam 6” Thick
10’X 20’ 4 Beam 6” Thick
Custom Sizes as well. Examples: 4’ x 20’, 4’ x 30’, and 4’ x 40’

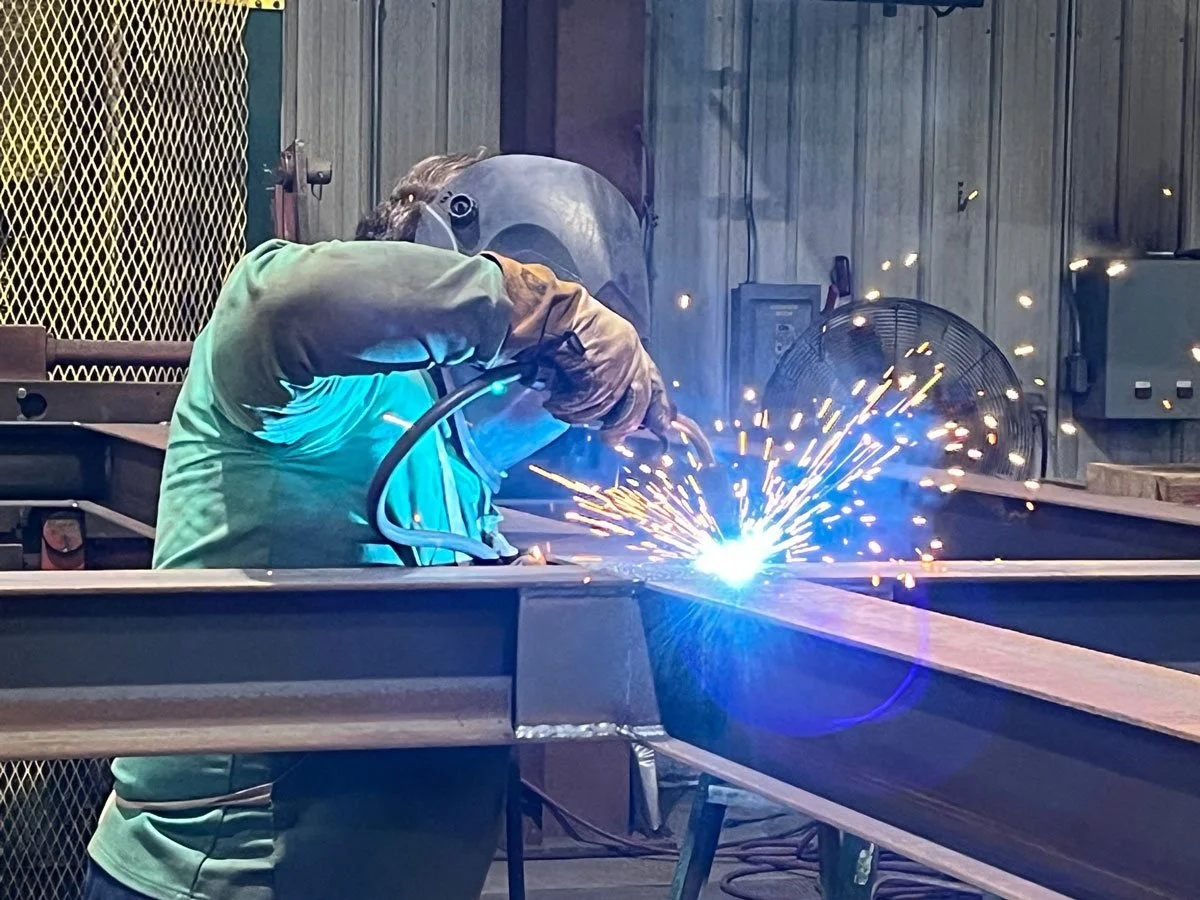

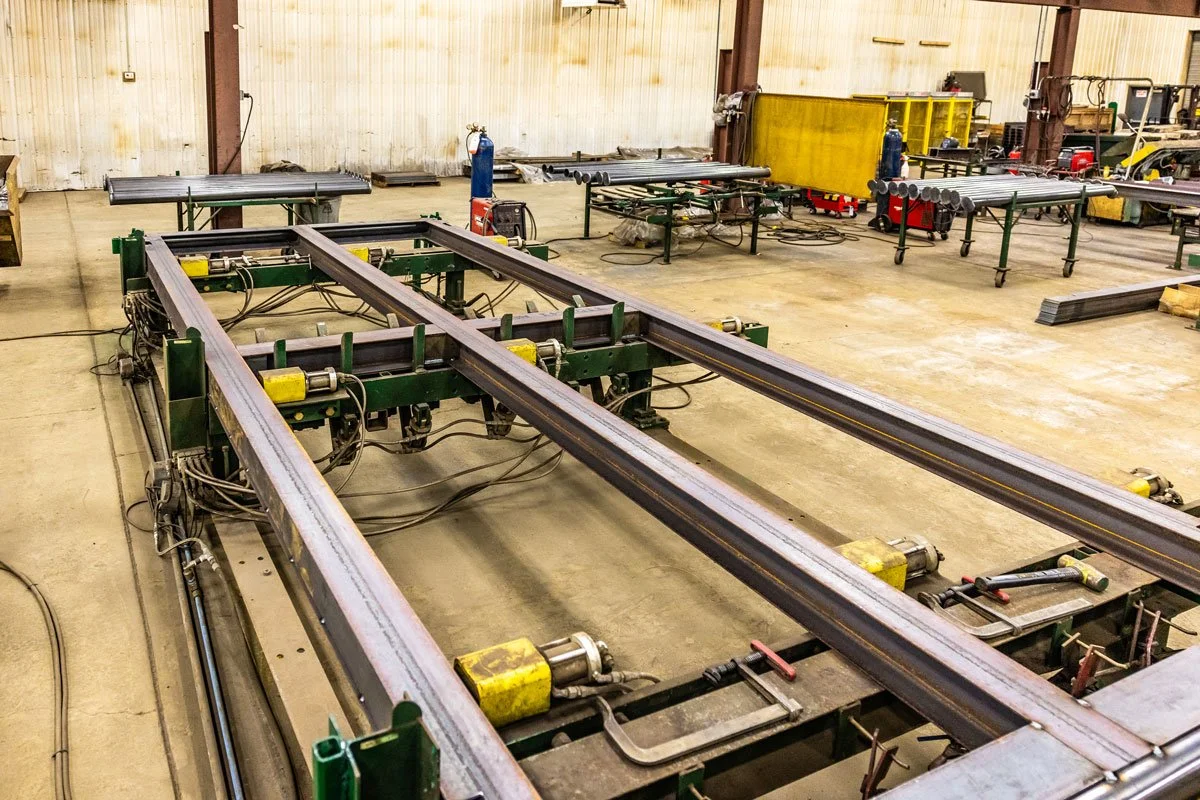

Welding
Flat welding is used on all welds. This technique results in deeper penetration of the welds, greater strength, and cleaner non-drip welds.
We don’t skimp on welding wire – we use at least 45lbs. of welding wire on each rig mat.
Hydraulically pressured wood inserts
Other Features

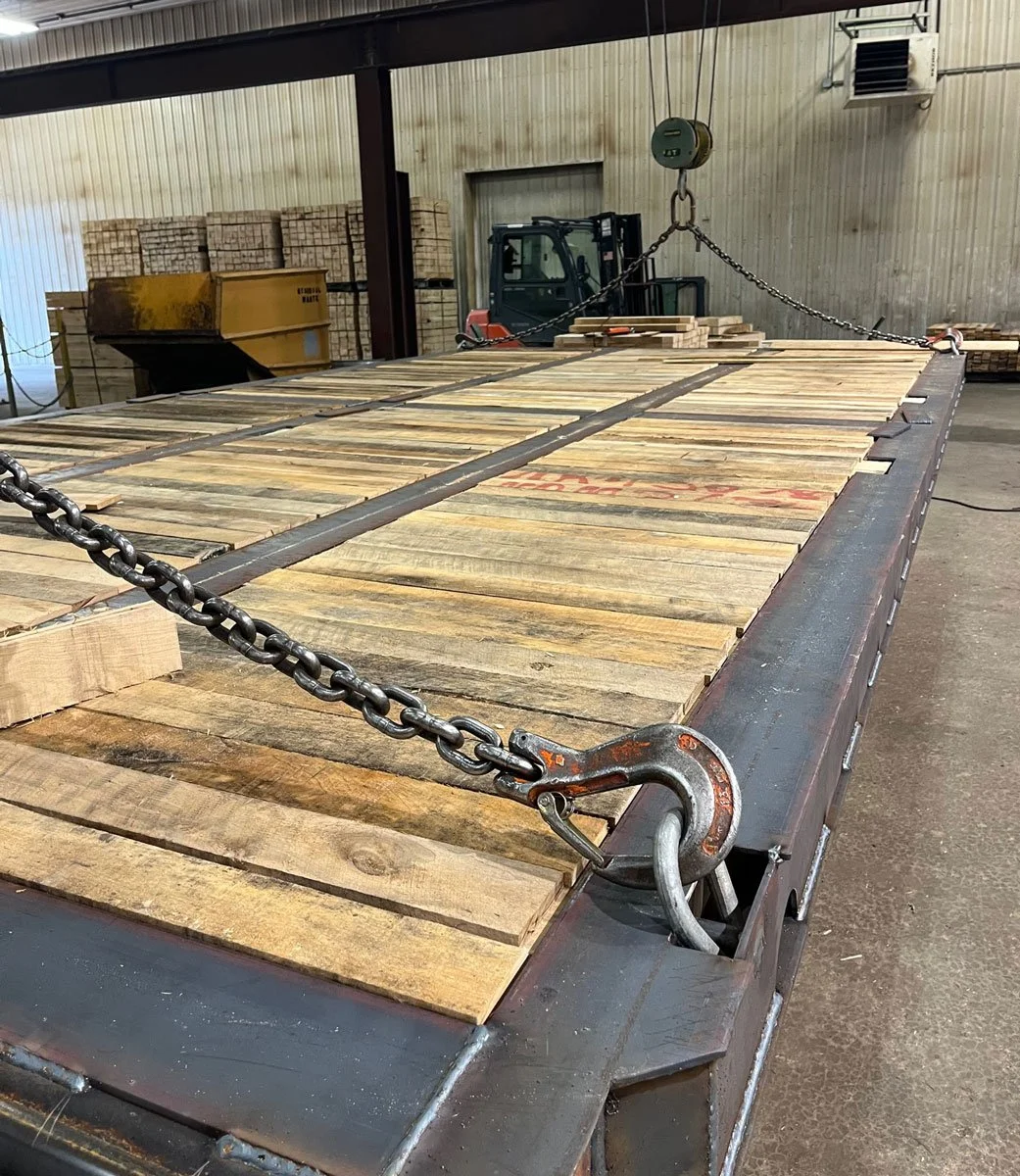

Lifting shackles have 3 load-bearing surfaces, which eliminates the chance of pins bending. Drain holes are located at each shackle to keep them dry and clear of debris.

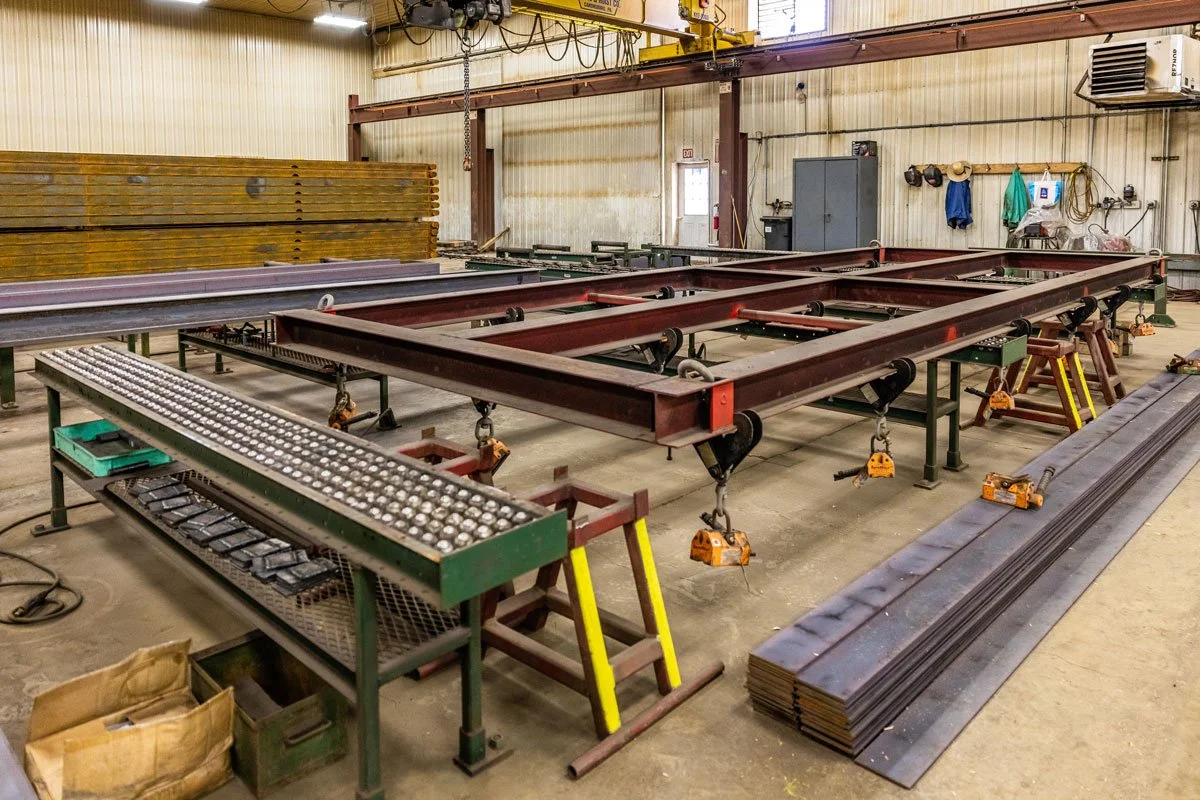

Sides are boxed with 1/4” plates that are stitch welded in 6” increments.

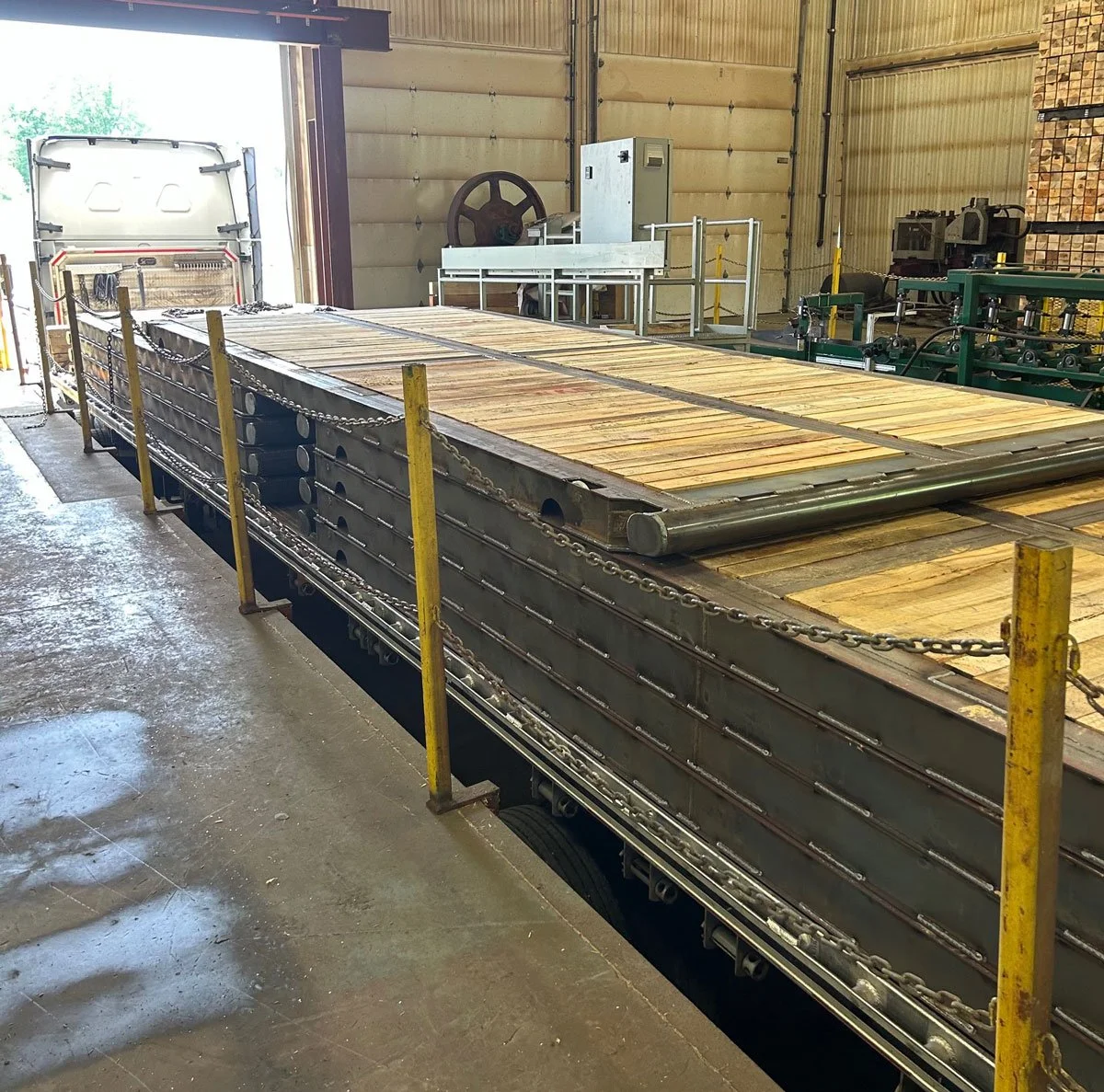

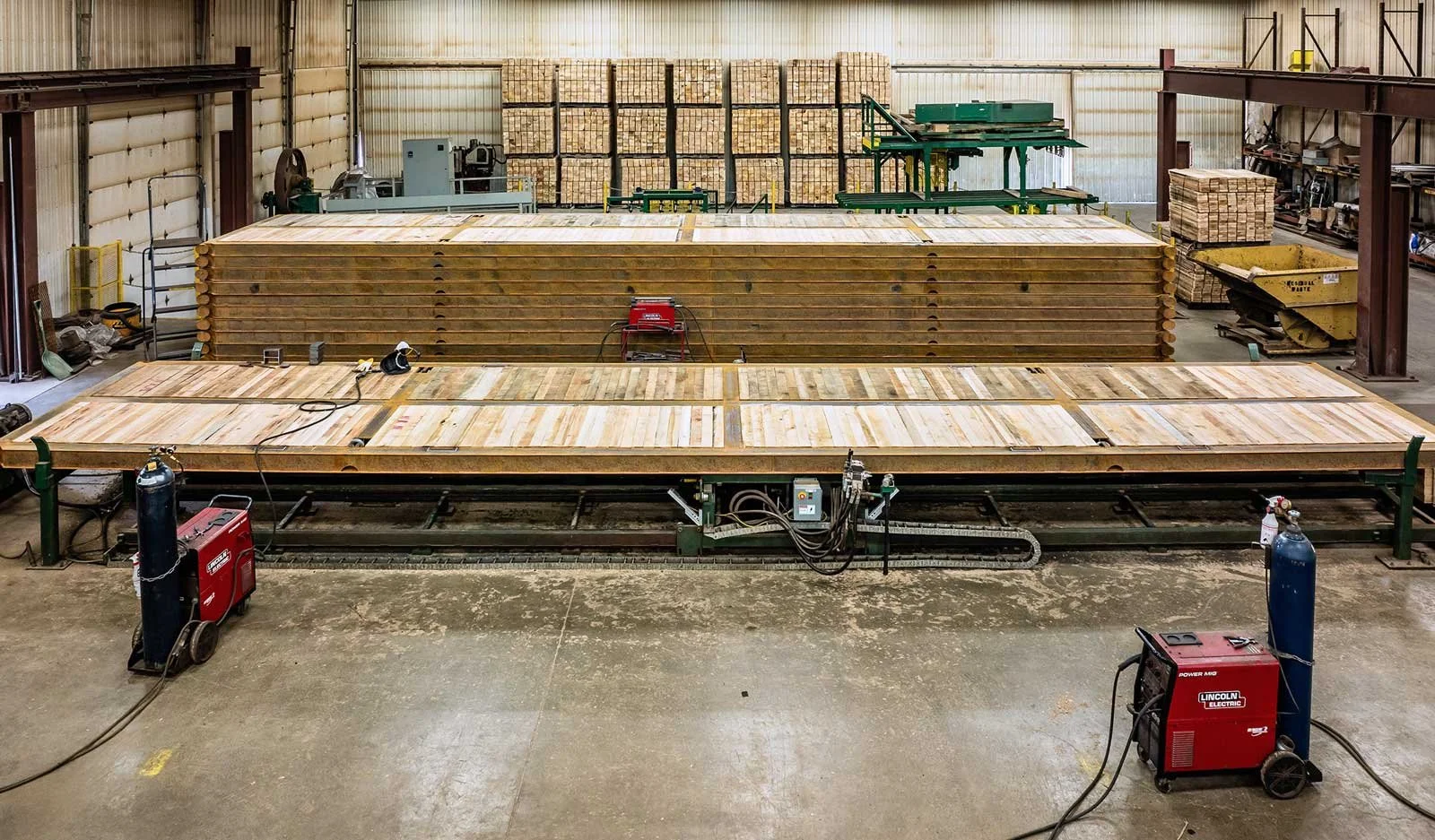

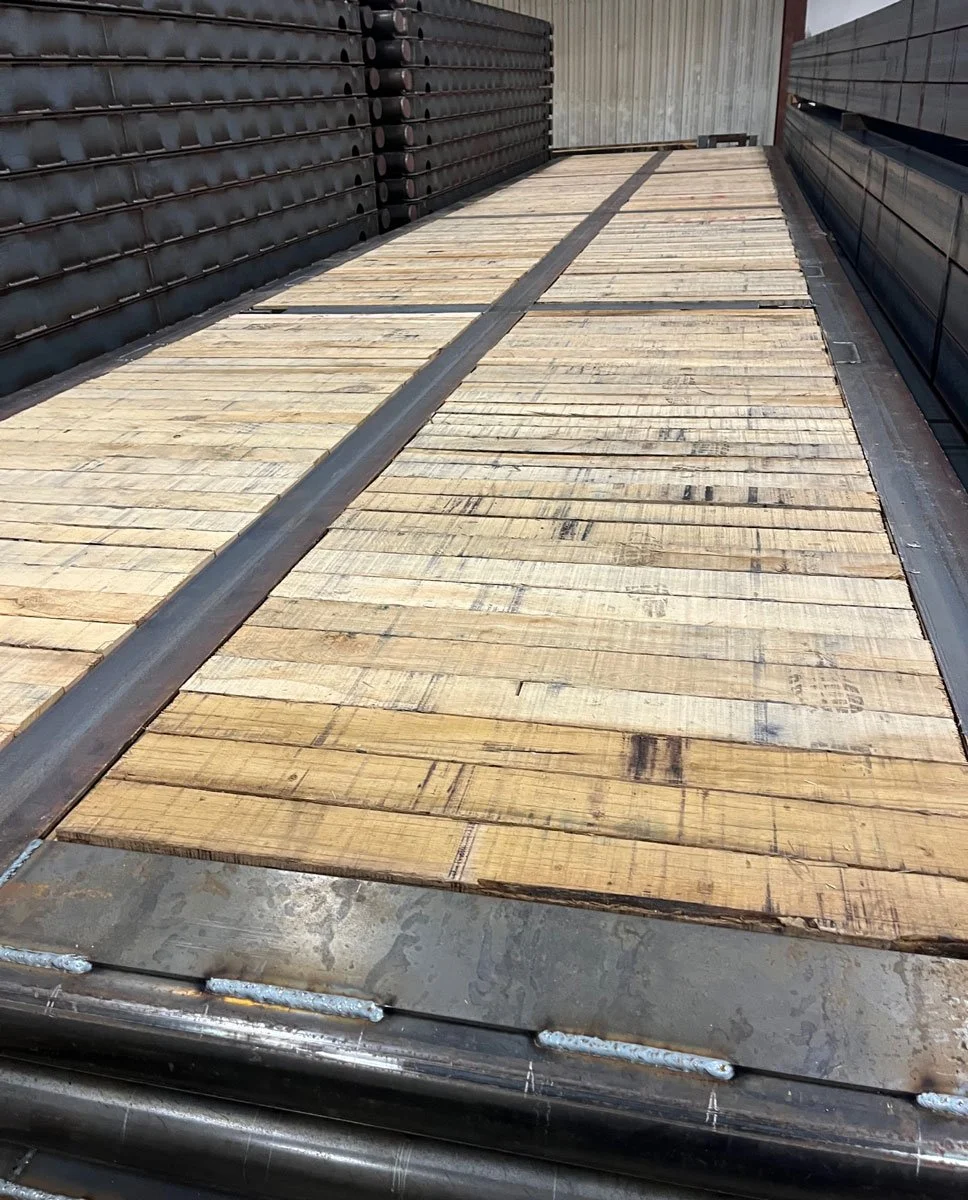

Wood beams are positioned crossways along the mat frame and hydraulically pressured into place. This technique is used to create an extremely tight fit. It also provides excellent water-tightness, even weight distribution and increased strength.
Industries That Utilize Rig Mats
Oil & Gas Operations
Construction Projects
Wetlands & Sensitive Sites
Utility & Telecom
Why Purchase Industrial Rig Mats?
Surface Protection: Protects grass, soil, and delicate ecosystems from compaction and equipment damage
All-Weather Performance: Heavy-duty construction designed to withstand mud, water, and extreme weather conditions
Quick Installation: Access solutions that can be deployed and removed rapidly
Equipment Stability: Provides a level, stable surface for crane mats and heavy machinery operation
Reusable & Sustainable: Durable construction mats designed for repeated use across multiple projects
Get the Ground Protection Rig Mats Your Project Needs
If you need general site protection, we have the rig mat solution you need.
Frequently Asked Questions About Rig Mats
-
Rig mats are ground protection solutions engineered for heavy industrial use. These durable overlays create stable work surfaces across sensitive, muddy, or swampy terrain. Whether you need mud mats for wetland protection or heavy-duty access mats for equipment movement, rig mats provide the foundation your project requires.
-
Yes—our specialized rig mats are specifically designed for marshy and sensitive environments. They distribute weight evenly to minimize ground compaction and environmental impact.
-
Flat welding is used on all welds. This technique results in deeper weld penetration, greater strength, and cleaner, non-drip welds.
-
Most construction mats utilize quick-connect systems, allowing rapid deployment. Site-specific factors may affect the timeline—we'll provide detailed scheduling with your quote.
-
We start with high-quality, Pennsylvania and other eastern USA hardwoods, known for their high density and strength. Our integrated lumber mill cuts and sorts raw timber. Then, three separate grading processes are used to select hardwood, ensuring that your mats contain only the best cuts of cherry, oak, beech, hickory, maple, and birch.
-
We can source all other types of mats that a customer needs for any specific ground covering situation.
